用途
安裝在各類給水系統的管道上，根據電信號或手動操作，使閥門打開或關閉。
特點
1、準確快速的控制反應。
2、關閉速度可調，閥門平穩關閉而不會產生壓力波動。
3、電磁閥的說明：電壓：交流220V 直流：24V
任選：防爆常開、常閉

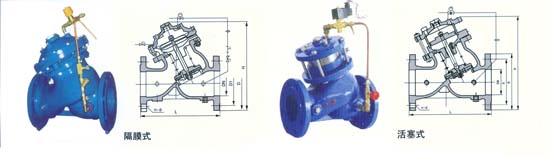

主要外形及連接尺寸
| DN |
L |
D |
01 |
n-d |
H |
| 1.0MPa |
1.6MPa |
2.5MPa |
1.0MPa |
1.6MPa |
2.5MPa |
1.0MPa |
1.6MPa |
2.5MPa |
| 50 |
203 |
165 |
165 |
165 |
125 |
125 |
125 |
4-18 |
4-18 |
4-18 |
320 |
| 65 |
216 |
185 |
185 |
186 |
145 |
145 |
145 |
4-18 |
4-18 |
8-18 |
367 |
| 80 |
241 |
200 |
200 |
200 |
160 |
160 |
160 |
8-18 |
8-18 |
8-18 |
400 |
| 100 |
292 |
220 |
220 |
235 |
180 |
180 |
190 |
8-18 |
8-18 |
8-22 |
452 |
| 125 |
330 |
250 |
250 |
270 |
210 |
210 |
220 |
8-18 |
8-18 |
8-22 |
522 |
| 150 |
356 |
285 |
285 |
300 |
240 |
240 |
250 |
8-22 |
8-22 |
8-26 |
592 |
| 200 |
457 |
340 |
340 |
360 |
295 |
295 |
310 |
8-22 |
12-22 |
12-26 |
696 |
| 250 |
533 |
395 |
405 |
425 |
350 |
355 |
370 |
12-22 |
12-26 |
12-30 |
810 |
| 300 |
610 |
445 |
460 |
485 |
400 |
410 |
430 |
12-22 |
12-26 |
12-30 |
943 |
| 350 |
686 |
505 |
520 |
555 |
460 |
470 |
490 |
16-22 |
16-26 |
16-30 |
1200 |
| 400 |
762 |
565 |
580 |
620 |
515 |
525 |
550 |
16-26 |
16-30 |
16-36 |
1230 |
| 450 |
864 |
615 |
640 |
670 |
565 |
585 |
600 |
20-26 |
20-30 |
20-36 |
1230 |
| 500 |
914 |
670 |
715 |
730 |
620 |
650 |
660 |
20-26 |
20-33 |
20-36 |
1270 |
| 600 |
1000 |
780 |
840 |
845 |
725 |
770 |
770 |
20-30 |
20-36 |
20-39 |
1600 |
| 700 |
1100 |
895 |
910 |
960 |
840 |
840 |
875 |
24-30 |
24-36 |
24-42 |
1750 |
| 800 |
1300 |
1015 |
1025 |
1085 |
950 |
950 |
990 |
24-33 |
24-39 |
24-48 |
1900 |
| 900 |
1400 |
1115 |
1125 |
|
1050 |
1050 |
|
28-33 |
28-39 |
|
2100 |
| 1000 |
1450 |
1230 |
1485 |
|
1160 |
1170 |
|
28-36 |
28-42 |
|
2400 |
| 1200 |
2000 |
1455 |
|
|
1380 |
|
|
32-39 |
|
|
2860 |
| 1400 |
2350 |
1675 |
|
|
1530 |
|
|
36-42 |
|
|
3200 |
